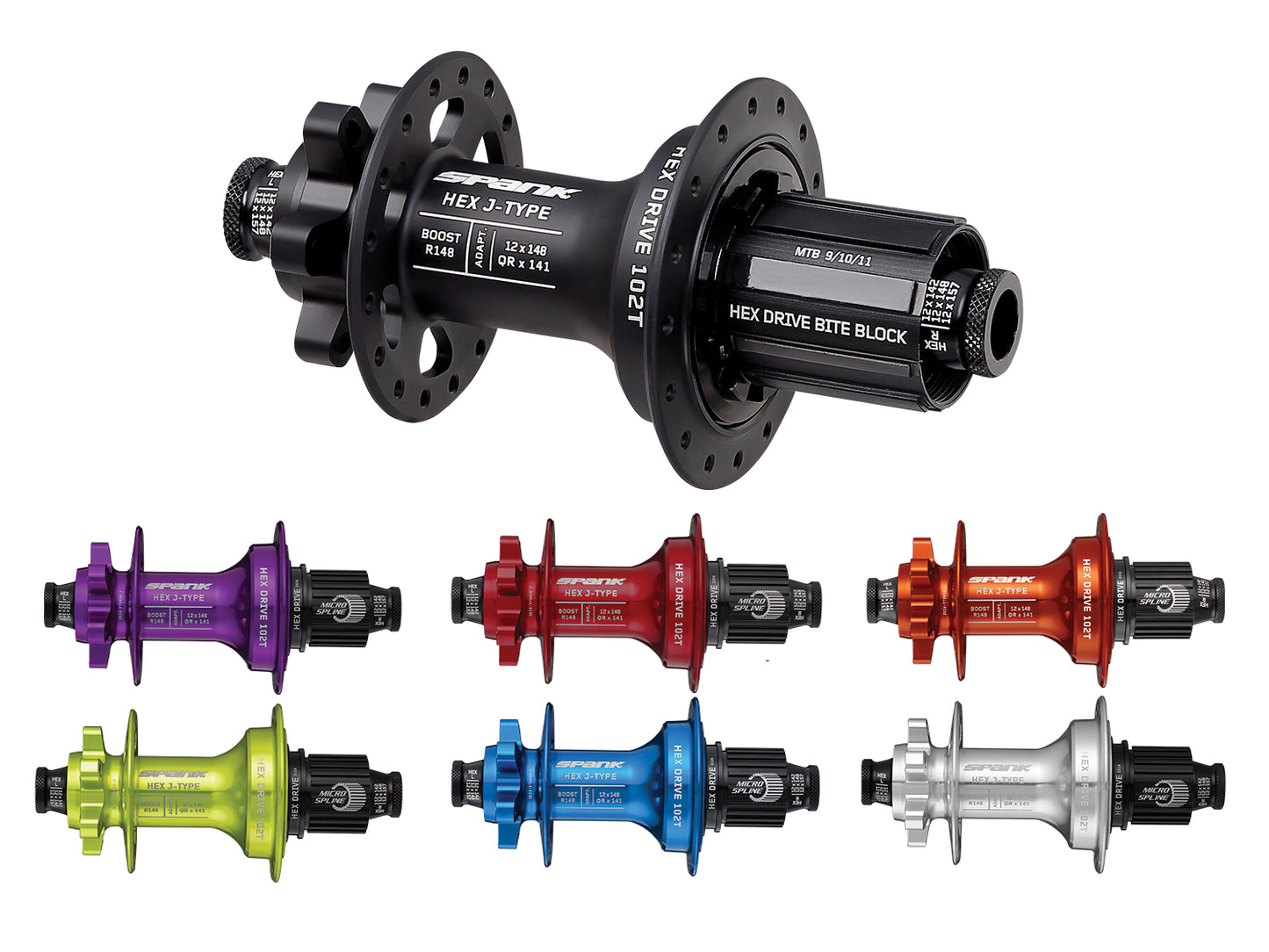

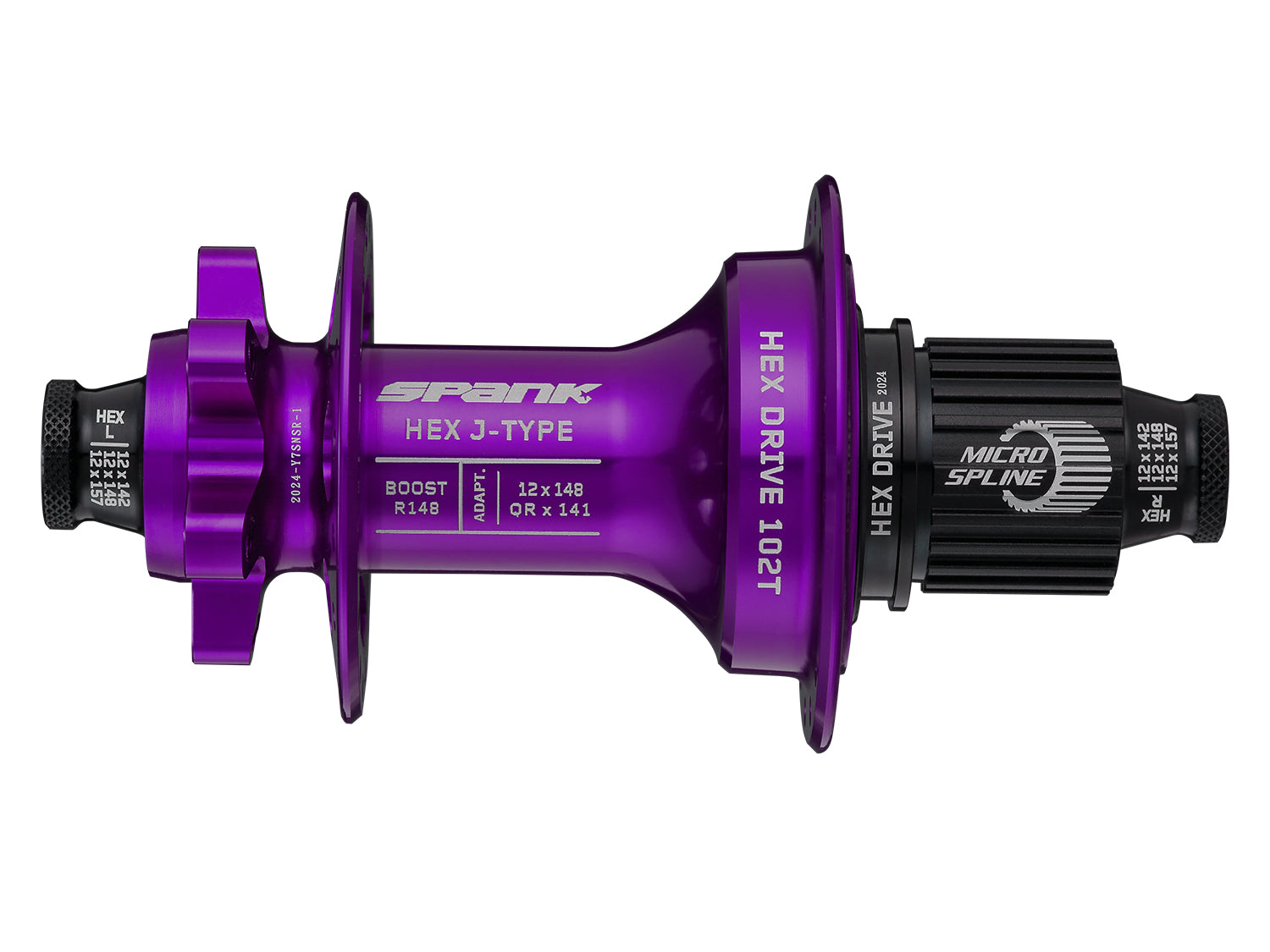

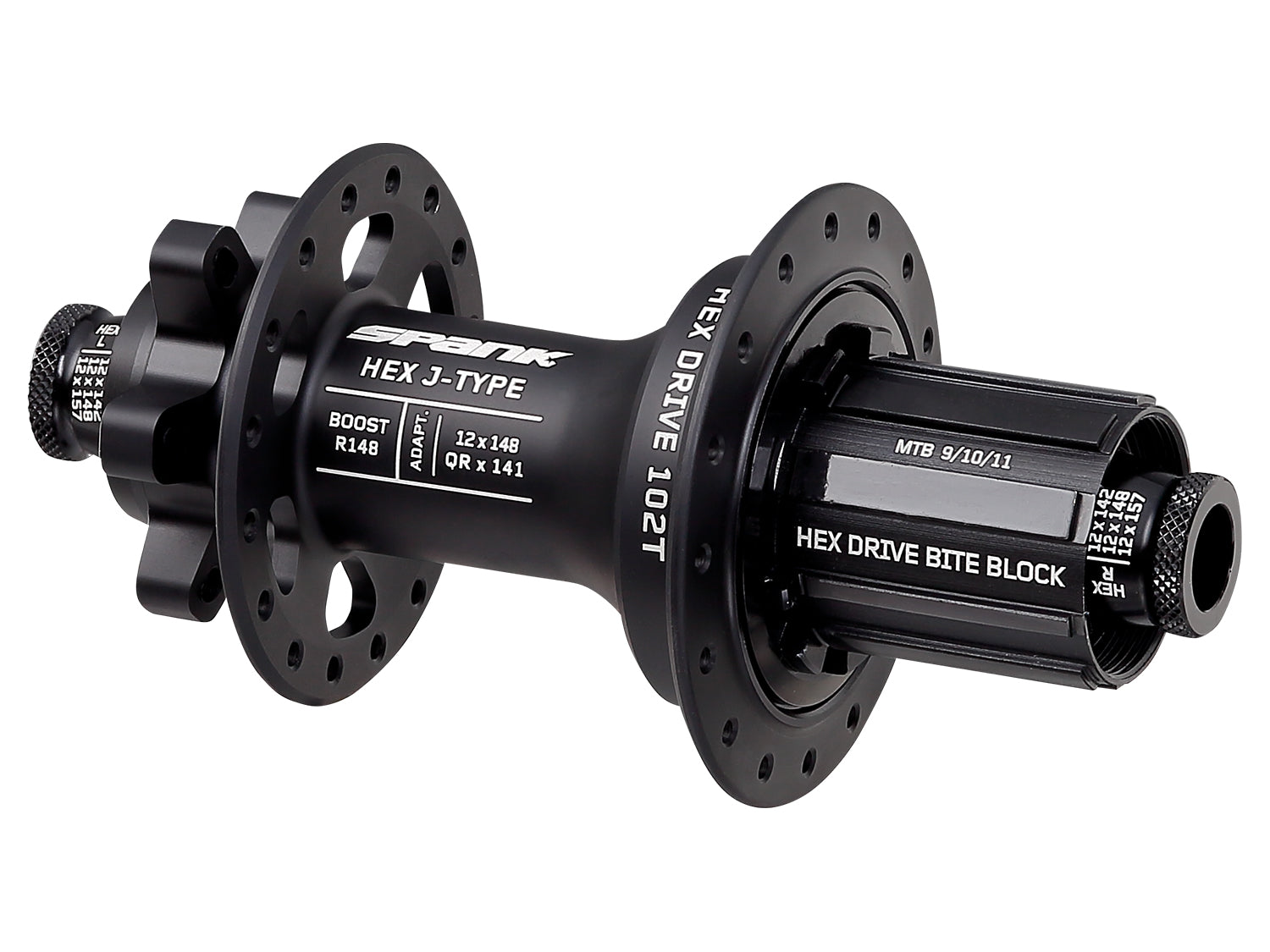

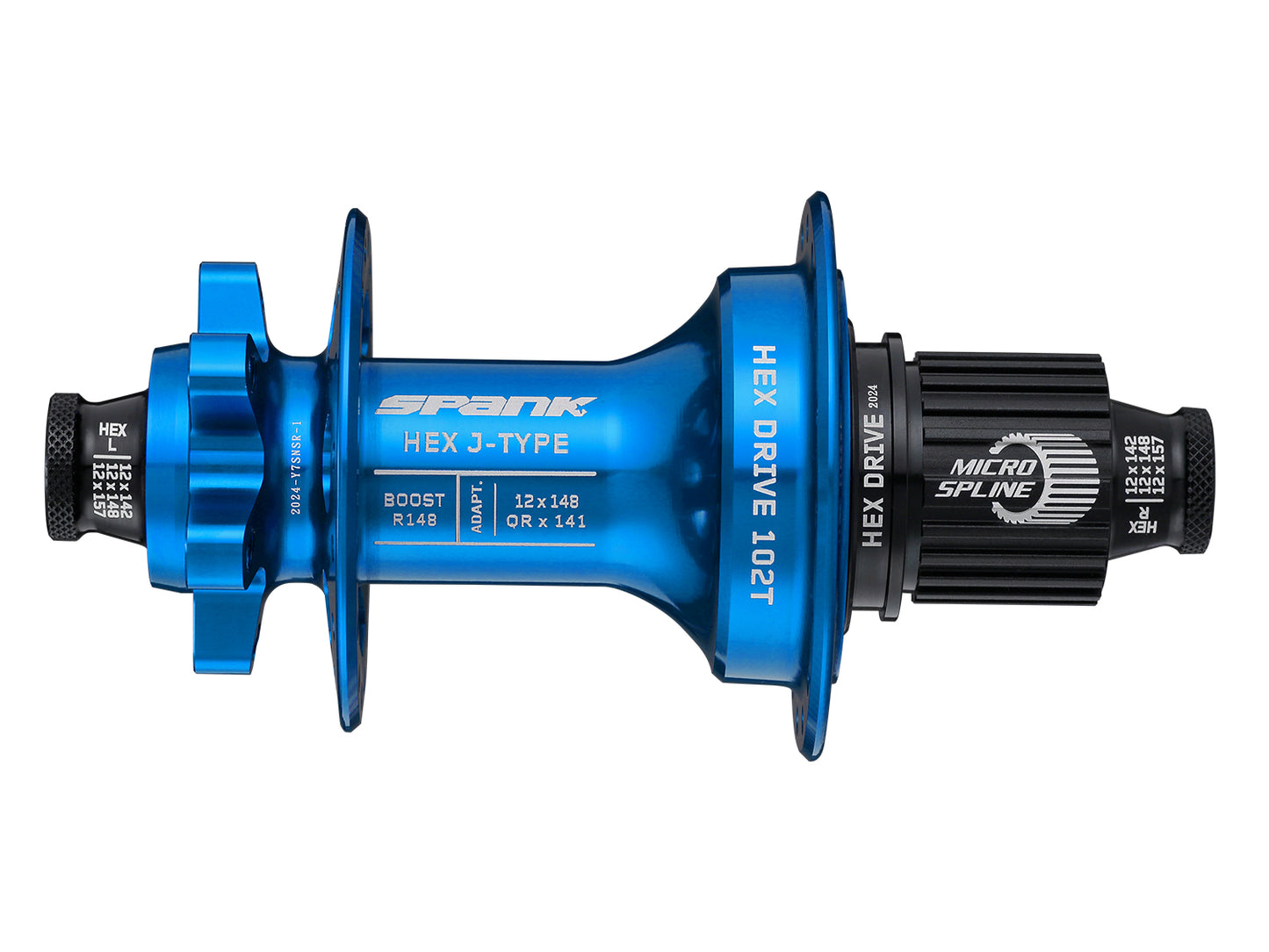

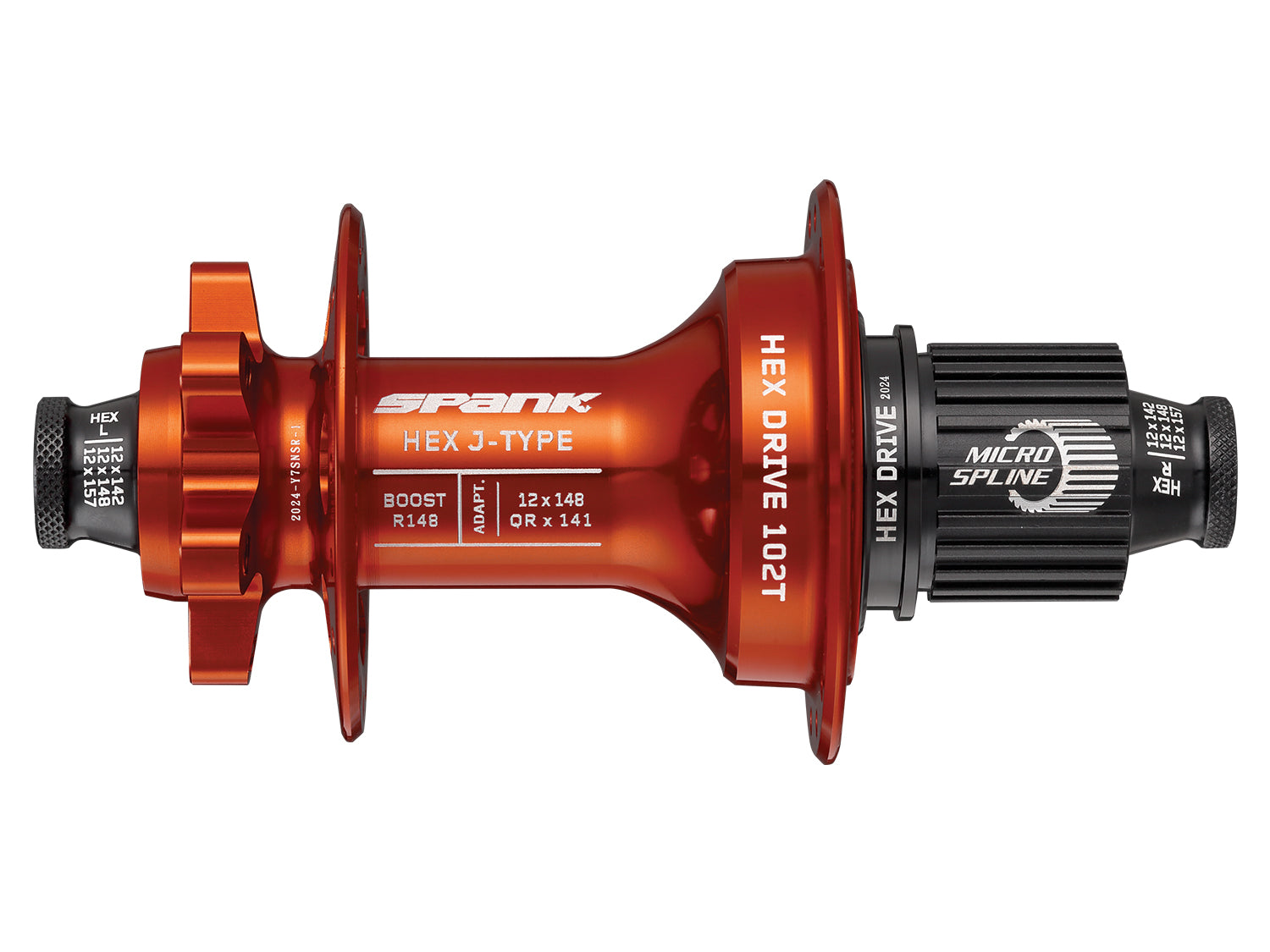

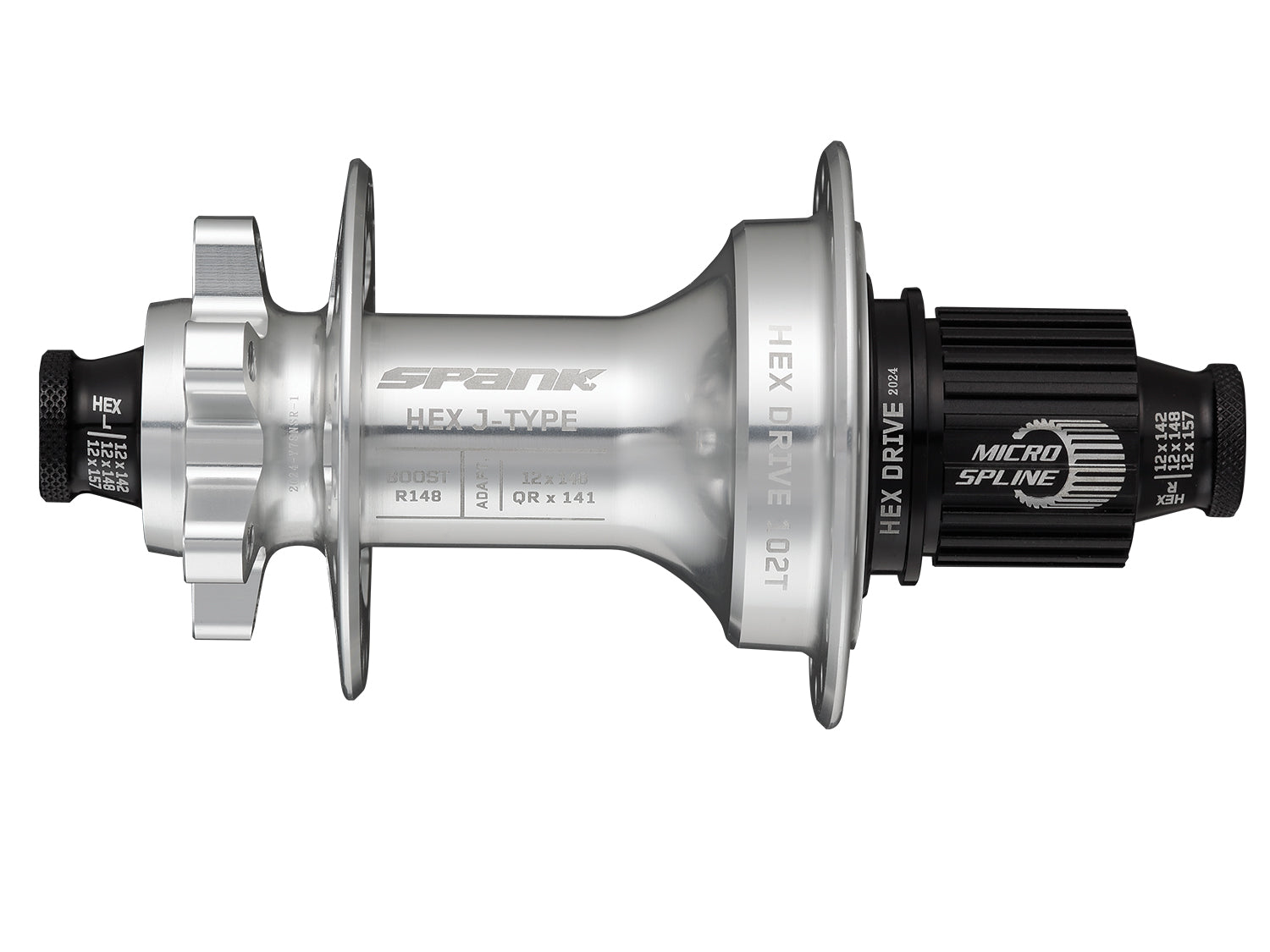

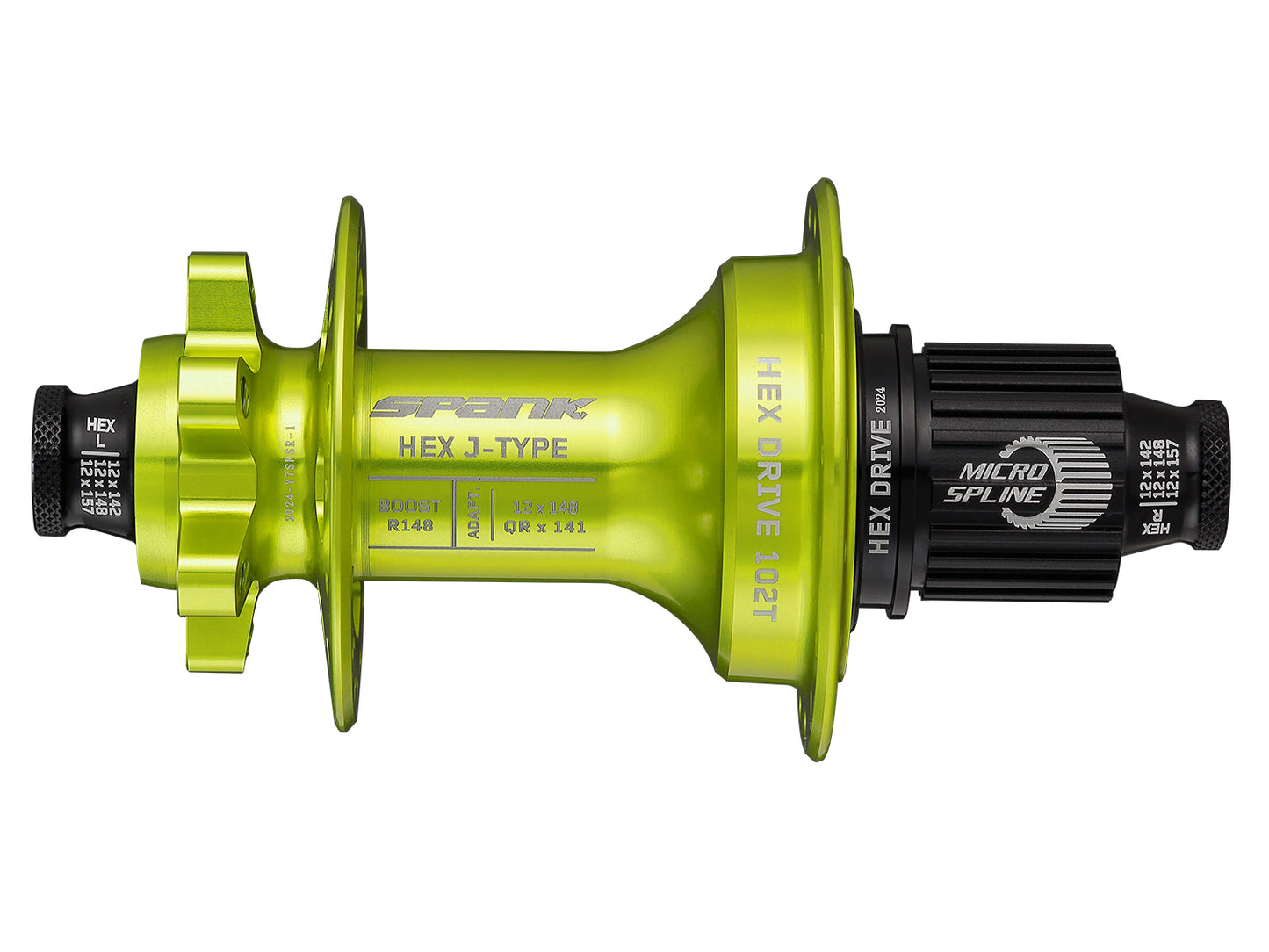

The Spank HEX rear hub employs a huge ratchet ring with 102 teeth. Six independent Pawls, each with 3 steps, work in unison to create 18 points of contact with the ratchet ring per click. The result is an almost instant pick-up of just 3.5° and unparalleled security against slippage under torque.

Features:

102T teeth ratchet ring & 6 independent pawls
Bite-Block alloy freehub bodies resist damage from cassettes without the weight penalty of steel
Advanced seal system improves prevention of system contamination
Version for J-Hook spokes
6-bolt disc mount
Improved adapter system

More details of the Spank HEX rear hub

Unique Flange Designs

The flange design reduces dish requirements during wheel building and minimizes the tension range between drive side and non-drive side spokes.

Oversized Alloy Axles

The rear hubs feature an oversized 7-series alloy internal axle, with 15mm diameter on non-drive side and 17mm diameter on the drive-side. This strong yet light weight axle is strong enough for all disciplines of mountainbiking, meaning no more added weight from steel axles in gravity models.

Enhanced Seal System

These hubs feature an advanced seal system, including Radial Shaft Seals, which improve protection from moisture and contamination over conventional seal types. Inside the hub, SPANK uses only industrial sealed bearings.

Anti-Bite Freehub Bodies

All HEX rear hubs feature a weight optimized alloy freehub bodies, with a single steel reinforced "Anti-Bite" spline, which reduces any movement and spline gouging.
Included in delivery: 1x rear hub
Material: Aluminium
Weight supplement: manufacturer information
